MPC (Multiple Precision Complex Library) Installation Guide

Note:
This installation guide is intended for self-learning and skill improvement only. The installation is performed on a personal computer and is not suitable for cluster-level installations. It is meant for reference purposes only and should not be used in production or large-scale environments.

What is MPC?

The Multiple Precision Complex Library (MPC) is a free library designed for complex floating-point arithmetic with multiple precision. MPC is often used alongside MPFR and GMP to provide precision in complex number computations that MPFR handles for floating-point numbers.

MPC is a core dependency for GCC as it aids in complex number calculations during the compilation process.

Why is MPC Needed?

MPC is required for:

  • High-Precision Complex Calculations: Provides support for multiple precision complex arithmetic operations.
  • Scientific Computations: Used in fields requiring high accuracy in complex number calculations, like engineering, physics, and computer science.
  • Core Dependency: MPC supports MPFR by providing arithmetic for complex numbers, which is essential for scientific software and GCC.

Installation Steps

Step 1: Download the Source Code

Download the MPC 1.3.1 source code manually from the official website:

MPC Official Website

Make sure to download the .tar.gz file for version 1.3.1.

Step 2: Transfer the Source Code to the Offline Machine

Once the source code is downloaded, transfer the .tar.gz file to your offline machine. You can use any method of file transfer that works in your environment (e.g., USB drive, external hard drive).

Step 3: Extract the Source Code

On your offline machine, extract the MPC source code using the following command:

tar -xvzf mpc-1.3.1.tar.gz

After extracting the files, use the ls command to check if the extraction was successful and if the mpc-1.3.1 directory is created:

ls

You should see the extracted mpc-1.3.1 directory.

Step 4: Check for the configure Script

Navigate into the MPC directory:

cd mpc-1.3.1

List the files to check if the configure script is present:

ls

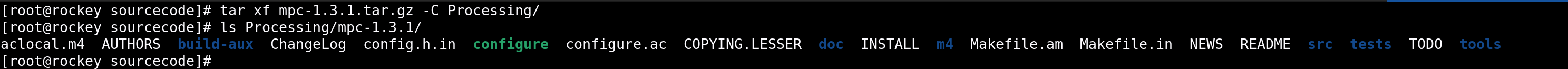

  • Directory Listing after Extraction Directory Listing

  • If the configure script is found, proceed to the next step.

  • If the configure script is missing, check for the autogen.sh script. If present, run it to generate the configure script:
./autogen.sh

This will create the configure script, which is necessary for the next steps.

MPC depends on GMP and MPFR for its functionality. There are two methods to link these dependencies during the MPC installation process:

Method 1: Export Environment Variables for GMP and MPFR

You can export the installation directories for GMP and MPFR before running the configure script. This method allows MPC to detect these libraries automatically.

export GMP_DIR=/path/to/gmp
export MPFR_DIR=/path/to/mpfr
export PATH=$GMP_DIR/bin:$MPFR_DIR/bin:$PATH
export LD_LIBRARY_PATH=$GMP_DIR/lib:$MPFR_DIR/lib:$LD_LIBRARY_PATH
export C_INCLUDE_PATH=$GMP_DIR/include:$MPFR_DIR/include:$C_INCLUDE_PATH

Replace /path/to/gmp and /path/to/mpfr with the correct paths to GMP and MPFR installations.

Method 2: Using the --with-gmp and --with-mpfr Flags

Alternatively, you can specify the GMP and MPFR directories directly in the configure script using the --with-gmp and --with-mpfr options:

./configure --prefix=/path/to/install --with-gmp=/path/to/gmp --with-mpfr=/path/to/mpfr

Replace /path/to/gmp, /path/to/mpfr, and /path/to/install with the correct directories.

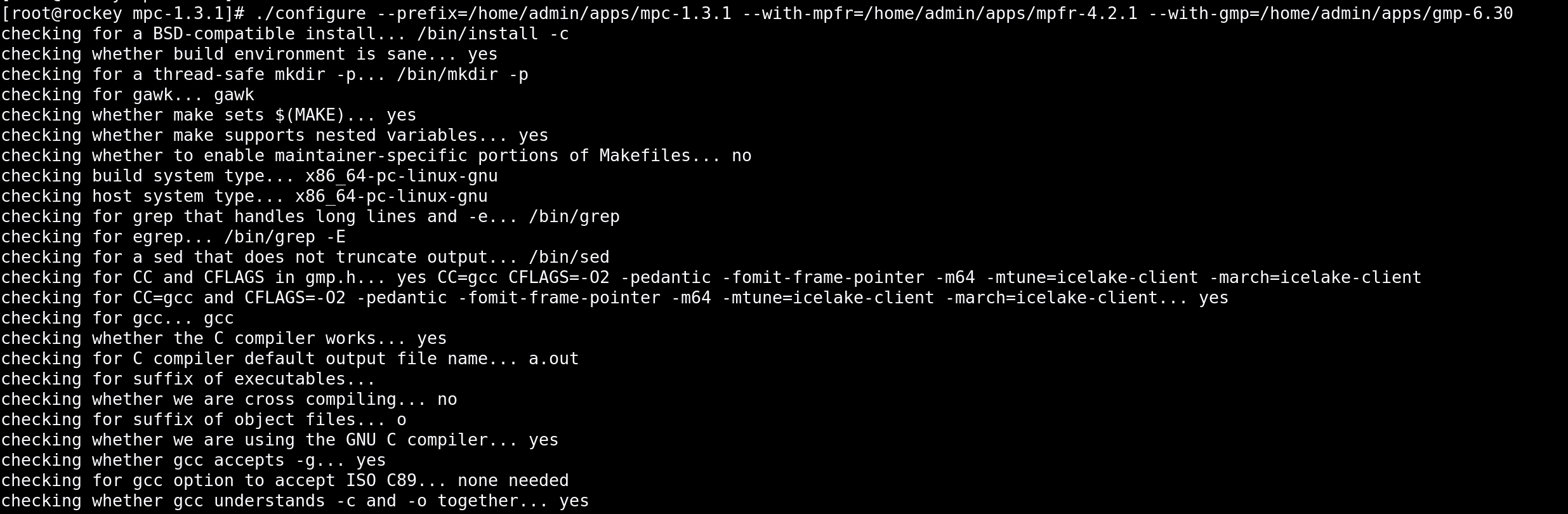

configure with GMP and MPFR Path Options MPC Configure

Step 6: Run the ./configure Script

Run the configure script to prepare the build environment:

./configure --prefix=/path/to/install --with-gmp=/path/to/gmp --with-mpfr=/path/to/mpfr

You can check available configuration options by running:

./configure --help

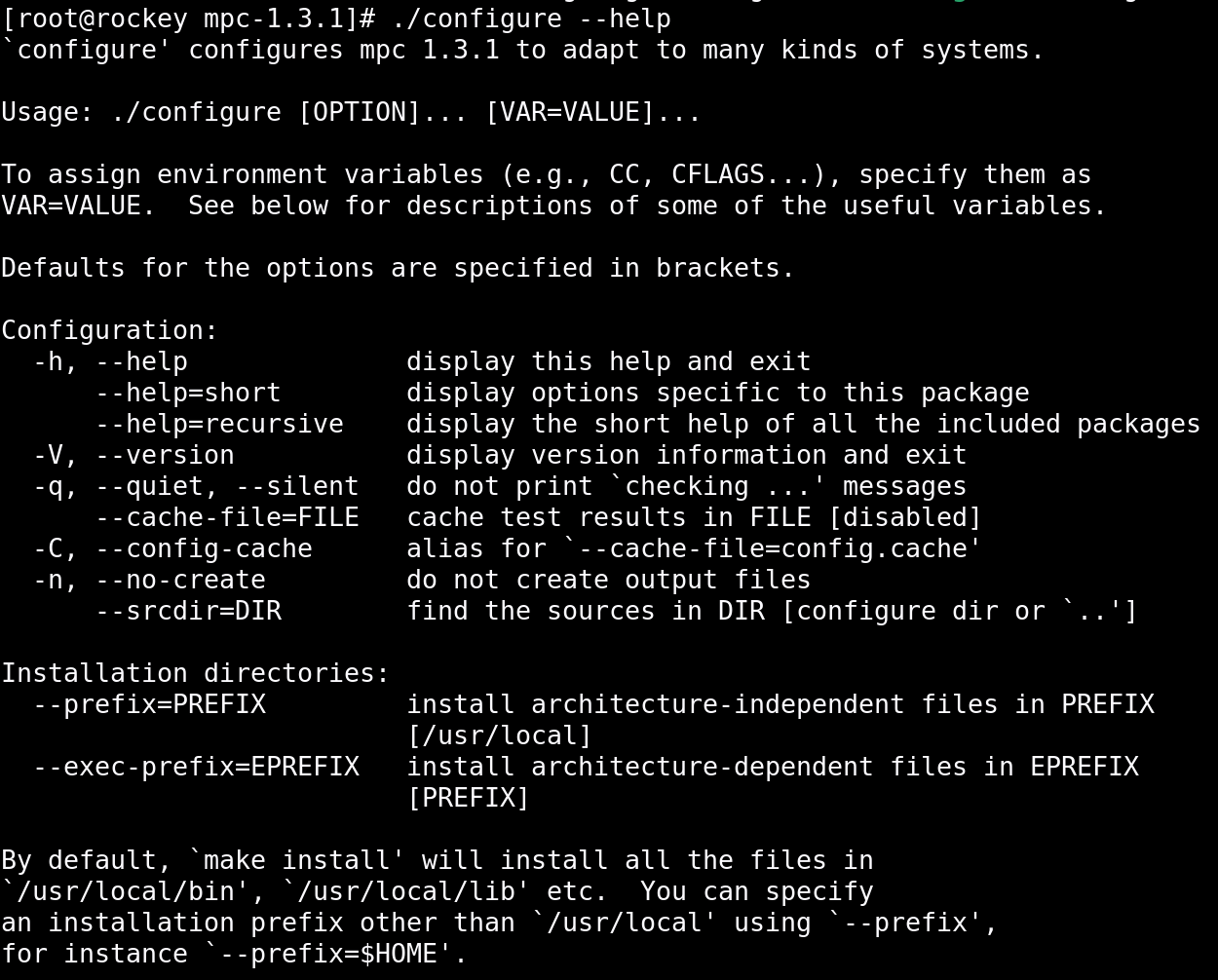

This will display the configuration options. Ensure that the GMP and MPFR paths are correctly set. * configure --help MPC Configure

Step 7: Compile the Code

Once the configuration is complete, compile MPC by running:

make -j

The -j flag utilizes multiple CPU cores to speed up the compilation process. Adjust the number of cores based on your system's capabilities (e.g., -j4 for four cores).

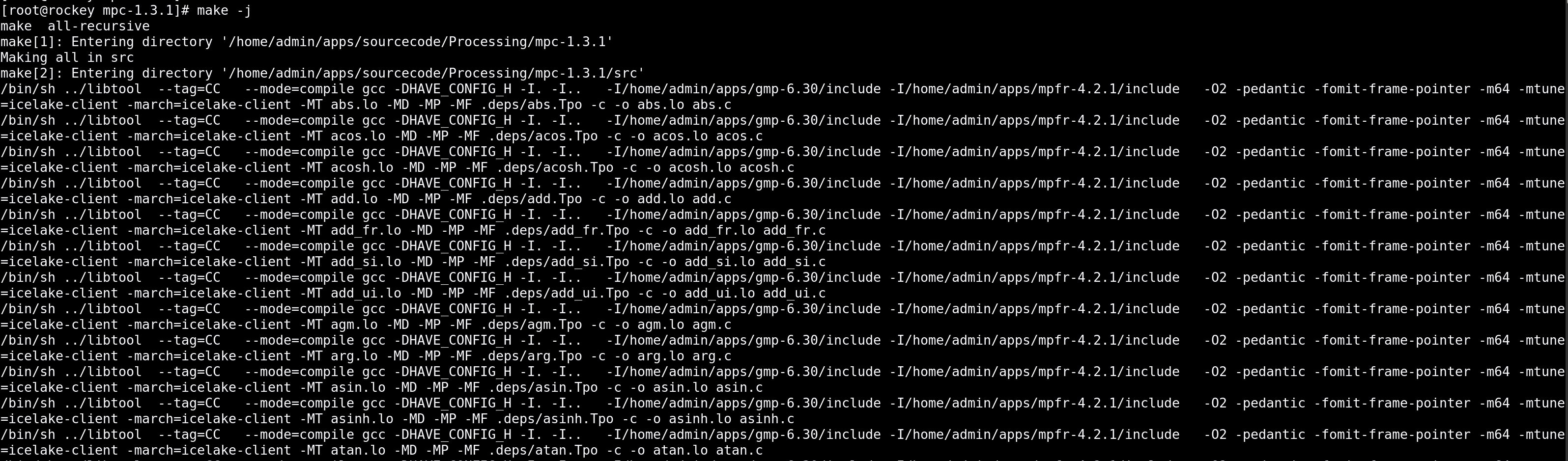

  • Running the make -j Command: Make -j

You can also verify that the compilation process ran smoothly by performing a check:

make check

Step 8: Install MPC

Once the compilation is finished, install MPC using:

sudo make install

This command installs MPC into the directory specified by the --prefix option during the configuration process.

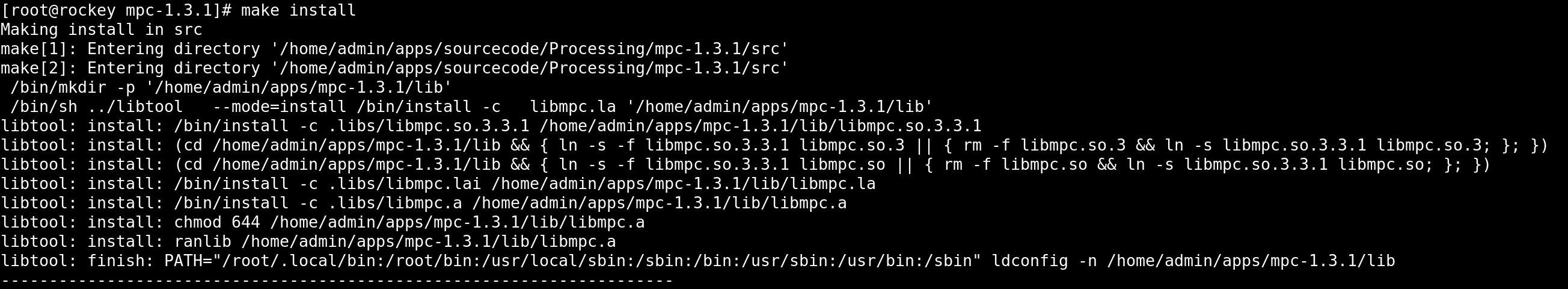

  • Running make install Make Install

Step 9: Verify Installation

After the installation is complete, verify that MPC has been installed correctly by checking the contents of the installation directory:

ls /path/to/install/bin
ls /path/to/install/lib

You should see the necessary MPC files in the bin and lib directories.

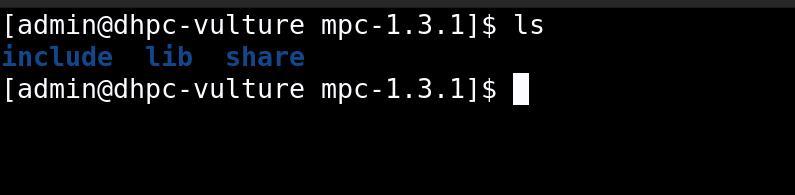

  • Final Installation Check Final Check

Screenshots

Here are the screenshots demonstrating the installation steps:

  • Directory Listing after Extraction Directory Listing

  • configure with GMP and MPFR Path Options MPC Configure

  • Running the make -j Command Make -j

  • Running make install Make Install

  • Final Installation Check Final Check
